【共享函数】绘制回测或模拟交易的买卖点

我们棒棒哒发表于：9 月 18 日 21：36回复(1)

注意: pyecharts本身存在bug , 如果绘图出现空白 , ctrl shift p 搜索 "信任notebook" ,点击信任 , 如果网页一直处于加载状态可以多刷新几次页面试试
还有问题的话可以重新建立一个notebook执行上述步骤

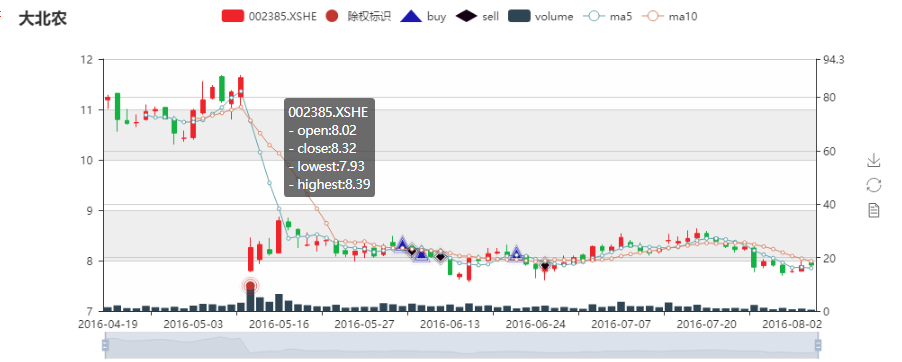

效果图:


用于在研究中获取回测信息,并将买卖点绘制在K线图中, 使用了pyecharts库 , 动手能力强的小伙伴们可以自己使用返回的overlip添加技术指标等显示在图上

(1) 初始化, 获取回测信息

回测ID（backtestId）:每个回测的唯一标识

TRADE_PLOT(ID = "回测ID")

初始化后将获得 trade_data 属性 , 是回测的所有交易记录详情

(2) 设置需要查看的标的(标的必须存在于交易列表中)

set_security('601866.XSHG' ,fq_date="last_day" ,forward_day=20  )

(3) 绘图

overlap = trade_plot.plot_base_bar()  #绘制K线图
overlap

后续您也也可以自己添加副图或者主图指标到K线图中去 , 同时上传了py文件 plot_k.py , 可以直接上传到研究中 ,使用时 from plot_k import * 就可以直接调用了

注意: 如果绘图出现空白 , ctrl+shift+p 搜索 "信任notebook" ,点击信任 , 多刷新几次页面¶

还有问题的话可以重新建立一个notebook执行上述步骤¶


import pandas as pd
from jqdata import *
import talib
from pyecharts import *

class TRADE_PLOT(object):
    def __init__(self,ID,security = None):
        online('https://cdn.bootcss.com/echarts/4.1.0.rc2')  #可能因为网络/pyecharts问题加载不出图像 , 网页没有加载的话可能需要多刷新几次
        self.ID = ID                  #回测ID
        self.security = security      #绘制K图的标的选择
        self.trade_data = self.get_trade_info(self.ID,self.security)     #交易详情
        self.price_data = None
    def get_trade_info(self,ID,security):
        '''获取交易数据'''
        data = pd.DataFrame(get_backtest(ID).get_orders())
        data['trade_date'] = pd.to_datetime(data.time).apply(lambda x : pd.to_datetime(x).date())
        return data
    def set_security(self , security,forward_day=20,fq_date="last_day"):
        """  设置需要查看的标的
        security = None ,  #需要查看的标的代码
        forward_day = 20 ,     #K线图第一次交易及最后一次交易前后回溯的交易日个数(剔除停牌)
        fq_date="last_day  #复权基准日, 默认K线的结束日期 ,其他可选参数详见API , get_bars"""
        self.security = security

        self.trade_data_security = self.trade_data[self.trade_data.security==security]
        if len(self.trade_data_security) ==0:
            print ('交易记录中没有该标的'.format(self.security))
        self.price_data = self.get_price_data(self.security,self.trade_data_security,forward_day,fq_date)

    def get_price_data(self,security,trade_data,forward_day,fq_date):
        '''获取价格数据'''
#         start_date= get_trade_days(end_date = trade_data.trade_date.iloc[0],count=forward_day)[0]
        last_date = trade_data.trade_date.iloc[-1] + datetime.timedelta(days = (forward_day*2 + 1))
        _after_days = get_trade_days(start_date=trade_data.trade_date.iloc[-1], end_date=last_date)
        end_date = _after_days[:forward_day][-1]
        day_range = get_trade_days( trade_data.trade_date.iloc[0] ,end_date)
        count = len(day_range)+forward_day

        if fq_date == 'last_day':
            fq_date = end_date
        p_df = pd.DataFrame(get_bars(security,end_dt=end_date,count=count,include_now=True,fq_ref_date=fq_date,
                                    fields=['date','open', 'high', 'low', 'close','volume'])).set_index('date')
#             get_price(security,end_date =end_date ,start_date= start_date ,fq=fq )
        return p_df
    def plot_base_bar(self):
        '''K线买卖点图'''
        security = self.security
        trade_data_security = self.trade_data_security
        price_data = self.price_data

        kline = Kline(get_security_info(security).display_name,)
        kline.add(security,price_data.index , price_data.loc[:,['open','close','low','high']].values,
                            is_datazoom_show=True,datazoom_range=[0,len(price_data)*2], datazoom_type= "both")
        kline._option['series'][0]['itemStyle']={'normal':{'color':'#ef232a', 'color0': '#14b143','borderColor': '#ef232a', 'borderColor0': '#14b143'}}

        es = EffectScatter("trade")
        buy_data = trade_data_security[trade_data_security.action== 'open']
        #symbol: 'circle', 'rect', 'roundRect', 'triangle', 'diamond', 'pin', 'arrow'
        es.add('buy',buy_data.trade_date , buy_data.price,symbol='triangle')#symbol_size=20,is_label_show=True)

        buy_data = trade_data_security[trade_data_security.action== 'close']
        es.add('sell',buy_data.trade_date , buy_data.price,symbol='diamond')#,is_label_show=True)
        es._option['series'][0]['itemStyle']={'normal':{'color':['#1d18ad']}}#, 'color0': '#140012'}}
        es._option['series'][1]['itemStyle']={'normal':{'color':['#140012']}}

        bar = Bar()
        bar.add("volume", price_data.index, price_data["volume"].values,is_datazoom_show=True,
                tooltip_tragger="axis", is_legend_show=True, is_yaxis_show=False, yaxis_max=10*(price_data["volume"].max()))

        es2 = EffectScatter("除权标识")
        factor = get_price(security,start_date=price_data.index[0],end_date=price_data.index[-1],
                           fields='factor',fq='post').factor.drop_duplicates(keep='first')[1:]
        factor.index = factor.index.date
#         print (factor)
        es2.add('除权标识',factor.index , factor.values ,is_datazoom_show=True,
                tooltip_tragger="axis", is_legend_show=True, is_yaxis_show=True, yaxis_max=factor.max()*10)


        overlap = Overlap(height=400,width=990)
        overlap.add(kline)     #K线主图
        overlap.add(es2,yaxis_index=1, is_add_yaxis=True)  #除权标记
        overlap.add(es)       # 买卖点信息
        overlap.add(bar,yaxis_index=2, is_add_yaxis=True)   #成交量图

        return overlap


    def plot_m_k(self,end_date,count,unit='5m',fq_ref_date=None):
        '''绘制分钟/bar线图'''
        security = self.security
        price_data = pd.DataFrame(get_bars(security,end_dt=end_date,unit=unit,fq_ref_date=fq_ref_date,count=count,
                                         fields=['date','open','close','low','high','volume'],include_now=True)).set_index('date')
        kline = Kline(get_security_info(security).display_name+' {}线'.format(unit))
        kline.add(security,price_data.index , price_data.loc[:,['open','close','low','high']].values,
                  is_datazoom_show=True,datazoom_range=[0,len(price_data)], datazoom_type= "both")
        kline._option['series'][0]['itemStyle']={'normal':{'color':'#ef232a', 'color0': '#14b143','borderColor': '#ef232a', 'borderColor0': '#14b143'}}
        overlap = Overlap(height=400,width=990)

        bar = Bar()
        bar.add("volume", price_data.index, price_data["volume"].values,is_datazoom_show=True,
                tooltip_tragger="axis", is_legend_show=True, is_yaxis_show=False, yaxis_max=10*max(price_data["volume"]))

        overlap.add(kline)
        overlap.add(bar,yaxis_index=1, is_add_yaxis=True)
        return overlap

初始化, 获取回测信息¶

回测ID（backtestId）:每个回测的唯一标识

初始化后将获得 trade_data 属性 , 是回测的所有交易记录详情

trade_plot = TRADE_PLOT(ID = "d3f8331cc9591c2d8d85cf2aaa348a23") #回测ID , backtestID

trade_plot.trade_data  #全部交易详情
# trade_plot.trade_data.groupby("security")['security'].count().sort_values(ascending=False)  #查看各个标的的交易次数
.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }
action amount commission filled gains limit_price match_time price security security_name side status time type trade_date
0 open 8300 13.32 8300 0.0 0 2016-06-01 09:30:00 5.35 600350.XSHG 山东高速 long done 2016-06-01 09:30:00 market 2016-06-01
1 open 8500 13.39 8500 0.0 0 2016-06-01 09:30:00 5.25 600018.XSHG 上港集团 long done 2016-06-01 09:30:00 market 2016-06-01
2 open 6500 13.28 6500 0.0 0 2016-06-01 09:30:00 6.81 601158.XSHG 重庆水务 long done 2016-06-01 09:30:00 market 2016-06-01
3 open 6900 13.31 6900 0.0 0 2016-06-01 09:30:00 6.43 601699.XSHG 潞安环能 long done 2016-06-01 09:30:00 market 2016-06-01
4 open 7000 13.40 7000 0.0 0 2016-06-01 09:30:00 6.38 000540.XSHE 中天城投 long done 2016-06-01 09:30:00 market 2016-06-01
5 open 3500 13.11 3500 0.0 0 2016-06-01 09:30:00 12.49 000686.XSHE 东北证券 long done 2016-06-01 09:30:00 market 2016-06-01
6 open 600 11.76 600 0.0 0 2016-06-01 09:30:00 65.32 000963.XSHE 华东医药 long done 2016-06-01 09:30:00 market 2016-06-01
7 open 2000 12.85 2000 0.0 0 2016-06-01 09:30:00 21.41 000895.XSHE 双汇发展 long done 2016-06-01 09:30:00 market 2016-06-01
8 open 4900 13.42 4900 0.0 0 2016-06-01 09:30:00 9.13 600016.XSHG 民生银行 long done 2016-06-01 09:30:00 market 2016-06-01
9 open 8400 13.36 8400 0.0 0 2016-06-01 09:30:00 5.30 000937.XSHE 冀中能源 long done 2016-06-01 09:30:00 market 2016-06-01
10 open 2100 13.06 2100 0.0 0 2016-06-01 09:30:00 20.73 600703.XSHG 三安光电 long done 2016-06-01 09:30:00 market 2016-06-01
11 open 1800 13.08 1800 0.0 0 2016-06-01 09:30:00 24.23 601238.XSHG 广汽集团 long done 2016-06-01 09:30:00 market 2016-06-01
12 open 5000 13.40 5000 0.0 0 2016-06-01 09:30:00 8.93 600717.XSHG 天津港 long done 2016-06-01 09:30:00 market 2016-06-01
13 open 2400 12.98 2400 0.0 0 2016-06-01 09:30:00 18.03 601009.XSHG 南京银行 long done 2016-06-01 09:30:00 market 2016-06-01
14 open 10400 13.45 10400 0.0 0 2016-06-01 09:30:00 4.31 601866.XSHG 中海集运 long done 2016-06-01 09:30:00 market 2016-06-01
15 open 9200 13.36 9200 0.0 0 2016-06-01 09:30:00 4.84 600028.XSHG 中国石化 long done 2016-06-01 09:30:00 market 2016-06-01
16 open 2800 13.20 2800 0.0 0 2016-06-01 09:30:00 15.72 002500.XSHE 山西证券 long done 2016-06-01 09:30:00 market 2016-06-01
17 open 10800 13.41 10800 0.0 0 2016-06-01 09:30:00 4.14 600157.XSHG 永泰能源 long done 2016-06-01 09:30:00 market 2016-06-01
18 open 3000 13.36 3000 0.0 0 2016-06-01 09:30:00 14.84 002142.XSHE 宁波银行 long done 2016-06-01 09:30:00 market 2016-06-01
19 open 5200 13.24 5200 0.0 0 2016-06-01 09:30:00 8.49 600089.XSHG 特变电工 long done 2016-06-01 09:30:00 market 2016-06-01
20 open 800 12.01 800 0.0 0 2016-06-01 09:30:00 50.06 002007.XSHE 华兰生物 long done 2016-06-01 09:30:00 market 2016-06-01
21 open 1300 12.76 1300 0.0 0 2016-06-01 09:30:00 32.73 601318.XSHG 中国平安 long done 2016-06-01 09:30:00 market 2016-06-01
22 open 5200 13.23 5200 0.0 0 2016-06-01 09:30:00 8.48 601992.XSHG 金隅股份 long done 2016-06-01 09:30:00 market 2016-06-01
23 open 1100 12.38 1100 0.0 0 2016-06-01 09:30:00 37.53 002252.XSHE 上海莱士 long done 2016-06-01 09:30:00 market 2016-06-01
24 open 1700 13.06 1700 0.0 0 2016-06-01 09:30:00 25.60 300024.XSHE 机器人 long done 2016-06-01 09:30:00 market 2016-06-01
25 open 2900 13.18 2900 0.0 0 2016-06-01 09:30:00 15.15 600111.XSHG 北方稀土 long done 2016-06-01 09:30:00 market 2016-06-01
26 open 1700 12.72 1700 0.0 0 2016-06-01 09:30:00 24.95 600867.XSHG 通化东宝 long done 2016-06-01 09:30:00 market 2016-06-01
27 open 3500 13.37 3500 0.0 0 2016-06-01 09:30:00 12.73 601555.XSHG 东吴证券 long done 2016-06-01 09:30:00 market 2016-06-01
28 open 5500 13.36 5500 0.0 0 2016-06-01 09:30:00 8.10 600369.XSHG 西南证券 long done 2016-06-01 09:30:00 market 2016-06-01
29 open 10200 13.37 10200 0.0 0 2016-06-01 09:30:00 4.37 600578.XSHG 京能电力 long done 2016-06-01 09:30:00 market 2016-06-01
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
946 open 400 5.00 400 0.0 0 2016-06-30 09:30:00 32.65 002230.XSHE 科大讯飞 long done 2016-06-30 09:30:00 market 2016-06-30
947 open 1200 5.00 1200 0.0 0 2016-06-30 09:30:00 11.92 600153.XSHG 建发股份 long done 2016-06-30 09:30:00 market 2016-06-30
948 open 1400 5.00 1400 0.0 0 2016-06-30 09:30:00 10.35 600021.XSHG 上海电力 long done 2016-06-30 09:30:00 market 2016-06-30
949 open 3400 5.00 3400 0.0 0 2016-06-30 09:30:00 4.33 600578.XSHG 京能电力 long done 2016-06-30 09:30:00 market 2016-06-30
950 open 6500 5.00 6500 0.0 0 2016-06-30 09:30:00 2.31 000725.XSHE 京东方A long done 2016-06-30 09:30:00 market 2016-06-30
951 open 2100 5.00 2100 0.0 0 2016-06-30 09:30:00 6.95 600583.XSHG 海油工程 long done 2016-06-30 09:30:00 market 2016-06-30
952 open 1400 5.00 1400 0.0 0 2016-06-30 09:30:00 10.68 601800.XSHG 中国交建 long done 2016-06-30 09:30:00 market 2016-06-30
953 open 3800 5.00 3800 0.0 0 2016-06-30 09:30:00 3.90 601991.XSHG 大唐发电 long done 2016-06-30 09:30:00 market 2016-06-30
954 open 300 5.00 300 0.0 0 2016-06-30 09:30:00 40.67 601336.XSHG 新华保险 long done 2016-06-30 09:30:00 market 2016-06-30
955 open 200 5.00 200 0.0 0 2016-06-30 09:30:00 67.45 300017.XSHE 网宿科技 long done 2016-06-30 09:30:00 market 2016-06-30
956 open 800 5.00 800 0.0 0 2016-06-30 09:30:00 17.96 601607.XSHG 上海医药 long done 2016-06-30 09:30:00 market 2016-06-30
957 open 2300 5.00 2300 0.0 0 2016-06-30 09:30:00 6.47 601006.XSHG 大秦铁路 long done 2016-06-30 09:30:00 market 2016-06-30
958 open 1400 5.00 1400 0.0 0 2016-06-30 09:30:00 10.19 601186.XSHG 中国铁建 long done 2016-06-30 09:30:00 market 2016-06-30
959 open 800 5.00 800 0.0 0 2016-06-30 09:30:00 16.96 600816.XSHG 安信信托 long done 2016-06-30 09:30:00 market 2016-06-30
960 open 600 5.00 600 0.0 0 2016-06-30 09:30:00 24.07 600637.XSHG 东方明珠 long done 2016-06-30 09:30:00 market 2016-06-30
961 open 2700 5.00 2700 0.0 0 2016-06-30 09:30:00 5.51 601118.XSHG 海南橡胶 long done 2016-06-30 09:30:00 market 2016-06-30
962 open 2800 5.00 2800 0.0 0 2016-06-30 09:30:00 5.26 601106.XSHG 中国一重 long done 2016-06-30 09:30:00 market 2016-06-30
963 open 1600 5.00 1600 0.0 0 2016-06-30 09:30:00 9.34 600704.XSHG 物产中大 long done 2016-06-30 09:30:00 market 2016-06-30
964 open 1000 5.00 1000 0.0 0 2016-06-30 09:30:00 13.86 600959.XSHG 江苏有线 long done 2016-06-30 09:30:00 market 2016-06-30
965 open 2100 5.00 2100 0.0 0 2016-06-30 09:30:00 7.09 601390.XSHG 中国中铁 long done 2016-06-30 09:30:00 market 2016-06-30
966 open 800 5.00 800 0.0 0 2016-06-30 09:30:00 17.90 600485.XSHG 信威集团 long done 2016-06-30 09:30:00 market 2016-06-30
967 close 900 11.01 900 -144.0 0 2016-06-30 14:35:00 6.68 002146.XSHE 荣盛发展 long done 2016-06-30 14:35:00 market 2016-06-30
968 close 400 10.70 400 12.0 0 2016-06-30 14:35:00 14.24 001979.XSHE 招商蛇口 long done 2016-06-30 14:35:00 market 2016-06-30
969 close 9700 410.58 9700 679.0 0 2016-06-30 14:35:00 32.56 000858.XSHE 五粮液 long done 2016-06-30 14:35:00 market 2016-06-30
970 close 700 10.78 700 28.0 0 2016-06-30 14:35:00 8.25 600674.XSHG 川投能源 long done 2016-06-30 14:35:00 market 2016-06-30
971 close 600 9.99 600 -144.0 0 2016-06-30 14:35:00 8.31 000876.XSHE 新希望 long done 2016-06-30 14:35:00 market 2016-06-30
972 close 1000 10.86 1000 22.5 0 2016-06-30 14:35:00 5.86 600705.XSHG 中航资本 long done 2016-06-30 14:35:00 market 2016-06-30
973 close 300 10.10 300 -195.0 0 2016-06-30 14:35:00 17.01 002450.XSHE 康得新 long done 2016-06-30 14:35:00 market 2016-06-30
974 close 1000 14.37 1000 20.0 0 2016-06-30 14:35:00 9.37 601009.XSHG 南京银行 long done 2016-06-30 14:35:00 market 2016-06-30
975 close 1200 12.67 1200 -48.0 0 2016-06-30 14:35:00 6.39 000069.XSHE 华侨城A long done 2016-06-30 14:35:00 market 2016-06-30

976 rows × 15 columns

设定股票后可以获取的属性 :

  1. 当前标的交易记录 trade_data_security ;
  2. 前证券的行情数据 price_data

set_security(self , security,p_f_day=20,fq_date="last_day")

  1. security = None : 需要查看的标的代码
  2. forward_day = 20 : K线图第一次交易及最后一次交易前后回溯的交易日个数(剔除停牌)
  3. fq_date="last_day" : 复权基准日
    last_day : 以K线的结束日期为基准日 (和回测较为接近)
    None : 不复权
    具体日期 : 以某一天价格点位为参照物，进行的前复权或后复权。设置为datetime.datetime.now()即返回前复权数据 ; 更多关于动态复权解释）
"""  设置需要查看的标的
        security = None ,  #需要查看的标的代码
        p_f_day = 20 ,     #K线图第一次交易及最后一次交易前后回溯的交易日个数(剔除停牌)
        fq_date="last_day  #复权基准日, 默认K线的结束日期 ,其他可选参数详见API , get_bars"""
trade_plot.set_security('601866.XSHG' ,fq_date="last_day" ,forward_day=20  )    #设置需要查看的标的,复权基准日及K线回溯天数,None为不复权

# trade_plot.price_data                   #查看当前证券的行情数据
trade_plot.trade_data_security            #当前证券交易记录
.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }
action amount commission filled gains limit_price match_time price security security_name side status time type trade_date
14 open 10400 13.45 10400 0.0 0 2016-06-01 09:30:00 4.31 601866.XSHG 中海集运 long done 2016-06-01 09:30:00 market 2016-06-01
345 close 10400 55.43 10400 -2184.0 0 2016-06-13 14:35:00 4.10 601866.XSHG 中海集运 long done 2016-06-13 14:35:00 market 2016-06-13
overlap = trade_plot.plot_base_bar()  #绘制K线图
overlap
require.config({ paths: { 'echarts': 'https://cdn.bootcss.com/echarts/4.1.0.rc2/echarts.min' } });
require(['echarts'], function(echarts) { var myChart_21948ca9ffe54c889d0ae39d6c9e9aaf = echarts.init(document.getElementById('21948ca9ffe54c889d0ae39d6c9e9aaf'), 'light', {renderer: 'canvas'}); function kline_tooltip_formatter(params) { var text; text = ((((((((((((params[0].seriesName + "<br/>") + "- open:") + params[0].data[1]) + "<br/>") + "- close:") + params[0].data[2]) + "<br/>") + "- lowest:") + params[0].data[3]) + "<br/>") + "- highest:") + params[0].data[4]); return text; } var option_21948ca9ffe54c889d0ae39d6c9e9aaf = { "title": [ { "text": "\u4e2d\u8fdc\u6d77\u53d1", "left": "auto", "top": "auto", "textStyle": { "fontSize": 18 }, "subtextStyle": { "fontSize": 12 } } ], "toolbox": { "show": true, "orient": "vertical", "left": "95%", "top": "center", "feature": { "saveAsImage": { "show": true, "title": "save as image" }, "restore": { "show": true, "title": "restore" }, "dataView": { "show": true, "title": "data view" } } }, "series_id": 5384594, "tooltip": { "trigger": "axis", "triggerOn": "mousemove|click", "axisPointer": { "type": "line" }, "formatter": kline_tooltip_formatter, "textStyle": { "fontSize": 14 }, "backgroundColor": "rgba(50,50,50,0.7)", "borderColor": "#333", "borderWidth": 0 }, "series": [ { "type": "candlestick", "name": "601866.XSHG", "data": [ [ 4.37, 4.51, 4.37, 4.51 ], [ 4.48, 4.55, 4.45, 4.62 ], [ 4.54, 4.51, 4.47, 4.55 ], [ 4.48, 4.34, 4.34, 4.52 ], [ 4.32, 4.12, 4.07, 4.32 ], [ 4.12, 4.53, 4.11, 4.53 ], [ 4.5, 4.44, 4.36, 4.62 ], [ 4.33, 4.3, 4.18, 4.39 ], [ 4.26, 4.25, 4.21, 4.37 ], [ 4.24, 4.29, 4.19, 4.37 ], [ 4.28, 4.22, 4.22, 4.3 ], [ 4.18, 4.09, 4.03, 4.19 ], [ 4.1, 4.09, 4.07, 4.15 ], [ 4.08, 4.15, 4.08, 4.27 ], [ 4.17, 4.24, 4.13, 4.35 ], [ 4.24, 4.16, 4.13, 4.24 ], [ 4.2, 4.15, 4.12, 4.22 ], [ 4.12, 4.16, 4.06, 4.17 ], [ 4.13, 4.19, 4.12, 4.28 ], [ 4.15, 4.18, 4.11, 4.24 ], [ 4.18, 4.33, 4.18, 4.4 ], [ 4.3, 4.32, 4.29, 4.44 ], [ 4.31, 4.33, 4.28, 4.35 ], [ 4.33, 4.33, 4.29, 4.38 ], [ 4.33, 4.3, 4.28, 4.36 ], [ 4.31, 4.26, 4.23, 4.32 ], [ 4.25, 4.27, 4.21, 4.39 ], [ 4.18, 4.05, 4.04, 4.2 ], [ 4.05, 4.07, 4.04, 4.14 ], [ 4.02, 4.12, 4.01, 4.15 ], [ 4.11, 4.08, 4.07, 4.17 ], [ 4.08, 4.09, 4.07, 4.15 ], [ 4.08, 4.06, 4.02, 4.11 ], [ 4.08, 4.02, 4.0, 4.09 ], [ 4.01, 4.03, 3.98, 4.03 ], [ 4.01, 3.98, 3.96, 4.02 ], [ 3.96, 3.89, 3.8, 3.99 ], [ 3.88, 3.94, 3.87, 3.94 ], [ 3.91, 3.94, 3.9, 4.01 ], [ 3.95, 3.99, 3.94, 4.06 ], [ 4.0, 3.96, 3.95, 4.0 ], [ 3.98, 3.97, 3.95, 4.01 ], [ 3.98, 4.04, 3.95, 4.06 ], [ 4.27, 4.17, 4.14, 4.44 ], [ 4.09, 4.12, 4.07, 4.14 ], [ 4.11, 4.15, 4.08, 4.26 ] ], "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 5384594, "itemStyle": { "normal": { "color": "#ef232a", "color0": "#14b143", "borderColor": "#ef232a", "borderColor0": "#14b143" } } }, { "type": "effectScatter", "name": "\u9664\u6743\u6807\u8bc6", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "circle", "symbolSize": 10, "data": [], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 5384594, "xAxisIndex": 0, "yAxisIndex": 1 }, { "type": "effectScatter", "name": "buy", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "triangle", "symbolSize": 10, "data": [ [ "2016-06-01", 4.31 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 5384594, "itemStyle": { "normal": { "color": [ "#1d18ad" ] } }, "xAxisIndex": 0, "yAxisIndex": 0 }, { "type": "effectScatter", "name": "sell", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "diamond", "symbolSize": 10, "data": [ [ "2016-06-13", 4.1 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 5384594, "itemStyle": { "normal": { "color": [ "#140012" ] } }, "xAxisIndex": 0, "yAxisIndex": 0 }, { "type": "bar", "name": "volume", "data": [ 32408207.0, 37804385.0, 23047567.0, 40750171.0, 36868027.0, 107768856.0, 99150772.0, 55042378.0, 37884805.0, 37597342.0, 29610866.0, 41230495.0, 25972929.0, 32142572.0, 46359104.0, 29588787.0, 18485331.0, 22624161.0, 34976069.0, 25198300.0, 67031730.0, 60090890.0, 34917977.0, 36064594.0, 25174086.0, 29284820.0, 55020370.0, 51900701.0, 31344079.0, 30845285.0, 27094080.0, 38268274.0, 34229155.0, 48409766.0, 42554531.0, 35517074.0, 50138488.0, 26935094.0, 49062865.0, 54301406.0, 27378108.0, 24856434.0, 55790406.0, 126709534.0, 50598213.0, 67992956.0 ], "barCategoryGap": "20%", "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 5384594, "xAxisIndex": 0, "yAxisIndex": 2 } ], "legend": [ { "data": [ "601866.XSHG", "\u9664\u6743\u6807\u8bc6", "buy", "sell", "volume" ], "selectedMode": "multiple", "show": true, "left": "center", "top": "top", "orient": "horizontal", "textStyle": { "fontSize": 12 } } ], "animation": true, "xAxis": [ { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "type": "category", "splitLine": { "show": false }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } }, "data": [ "2016-05-03", "2016-05-04", "2016-05-05", "2016-05-06", "2016-05-09", "2016-05-10", "2016-05-11", "2016-05-12", "2016-05-13", "2016-05-16", "2016-05-17", "2016-05-18", "2016-05-19", "2016-05-20", "2016-05-23", "2016-05-24", "2016-05-25", "2016-05-26", "2016-05-27", "2016-05-30", "2016-05-31", "2016-06-01", "2016-06-02", "2016-06-03", "2016-06-06", "2016-06-07", "2016-06-08", "2016-06-13", "2016-06-14", "2016-06-15", "2016-06-16", "2016-06-17", "2016-06-20", "2016-06-21", "2016-06-22", "2016-06-23", "2016-06-24", "2016-06-27", "2016-06-28", "2016-06-29", "2016-06-30", "2016-07-01", "2016-07-04", "2016-07-05", "2016-07-06", "2016-07-07" ], "scale": true } ], "yAxis": [ { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } }, "scale": true, "splitArea": { "show": true } }, { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "max": NaN, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } } }, { "show": false, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "max": 1267095340.0, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } } } ], "color": [ "#c23531", "#2f4554", "#61a0a8", "#d48265", "#749f83", "#ca8622", "#bda29a", "#6e7074", "#546570", "#c4ccd3", "#f05b72", "#ef5b9c", "#f47920", "#905a3d", "#fab27b", "#2a5caa", "#444693", "#726930", "#b2d235", "#6d8346", "#ac6767", "#1d953f", "#6950a1", "#918597", "#f6f5ec" ], "dataZoom": [ { "show": true, "type": "slider", "start": 0, "end": 92, "orient": "horizontal" }, { "show": true, "type": "inside", "start": 0, "end": 92, "orient": "horizontal" } ] }; myChart_21948ca9ffe54c889d0ae39d6c9e9aaf.setOption(option_21948ca9ffe54c889d0ae39d6c9e9aaf); });

示例 : K线添加MA线¶

trade_plot.plot_base_bar() 返回一个pyecharts 的 overlap , 大家也可以按照需求增加各种指标或副图上去 ,下边以最简单的ma为例

需要注意 xaxis_index 需要和K线使用的索引数据类型(datetime.date)保持一致,否则无法显示

def plot_ma(data,short,long):
    ma_short= price_data.close.rolling(window=short).mean().round(2)
    ma_long =price_data.close.rolling(window=long).mean().round(2)
    line = Line()
    line.add("ma{}".format(short),ma_short.index, ma_short.values)
    line.add("ma{}".format(long),ma_long.index, ma_long.values)
    return line

trade_plot.set_security('002385.XSHE',forward_day  = 30,fq_date=None)   #变更标的,检查 fq_date 参数及除权标记是否生效
overlap2 = trade_plot.plot_base_bar()
price_data = trade_plot.price_data
overlap2.add(plot_ma(price_data,5,10))   # 添加MA图
require.config({ paths: { 'echarts': 'https://cdn.bootcss.com/echarts/4.1.0.rc2/echarts.min' } });
require(['echarts'], function(echarts) { var myChart_962c362ca97a4c7680b1149c6dba2350 = echarts.init(document.getElementById('962c362ca97a4c7680b1149c6dba2350'), 'light', {renderer: 'canvas'}); function kline_tooltip_formatter(params) { var text; text = ((((((((((((params[0].seriesName + "<br/>") + "- open:") + params[0].data[1]) + "<br/>") + "- close:") + params[0].data[2]) + "<br/>") + "- lowest:") + params[0].data[3]) + "<br/>") + "- highest:") + params[0].data[4]); return text; } var option_962c362ca97a4c7680b1149c6dba2350 = { "title": [ { "text": "\u5927\u5317\u519c", "left": "auto", "top": "auto", "textStyle": { "fontSize": 18 }, "subtextStyle": { "fontSize": 12 } } ], "toolbox": { "show": true, "orient": "vertical", "left": "95%", "top": "center", "feature": { "saveAsImage": { "show": true, "title": "save as image" }, "restore": { "show": true, "title": "restore" }, "dataView": { "show": true, "title": "data view" } } }, "series_id": 630566, "tooltip": { "trigger": "axis", "triggerOn": "mousemove|click", "axisPointer": { "type": "line" }, "formatter": kline_tooltip_formatter, "textStyle": { "fontSize": 14 }, "backgroundColor": "rgba(50,50,50,0.7)", "borderColor": "#333", "borderWidth": 0 }, "series": [ { "type": "candlestick", "name": "002385.XSHE", "data": [ [ 11.19, 11.24, 11.01, 11.29 ], [ 11.32, 10.8, 10.56, 11.32 ], [ 10.78, 10.72, 10.7, 11.01 ], [ 10.73, 10.74, 10.65, 10.9 ], [ 10.8, 10.96, 10.78, 11.1 ], [ 10.97, 11.0, 10.88, 11.06 ], [ 11.04, 10.81, 10.8, 11.04 ], [ 10.8, 10.53, 10.3, 10.87 ], [ 10.42, 10.43, 10.36, 10.58 ], [ 10.44, 10.98, 10.4, 11.01 ], [ 10.93, 11.19, 10.9, 11.56 ], [ 11.22, 11.44, 11.2, 11.48 ], [ 11.65, 11.17, 11.13, 11.68 ], [ 11.11, 11.35, 10.8, 11.38 ], [ 11.25, 11.63, 11.06, 11.68 ], [ 7.8, 8.26, 7.77, 8.46 ], [ 8.02, 8.32, 7.93, 8.39 ], [ 8.22, 8.14, 8.1, 8.45 ], [ 8.15, 8.79, 8.15, 8.87 ], [ 8.77, 8.67, 8.6, 8.85 ], [ 8.62, 8.47, 8.25, 8.64 ], [ 8.3, 8.31, 8.28, 8.56 ], [ 8.31, 8.38, 8.18, 8.52 ], [ 8.39, 8.4, 8.29, 8.45 ], [ 8.39, 8.15, 8.08, 8.39 ], [ 8.2, 8.13, 8.07, 8.23 ], [ 8.11, 8.19, 7.98, 8.2 ], [ 8.16, 8.28, 8.05, 8.35 ], [ 8.25, 8.09, 8.06, 8.25 ], [ 8.12, 8.29, 8.09, 8.33 ], [ 8.36, 8.29, 8.25, 8.49 ], [ 8.32, 8.27, 8.18, 8.36 ], [ 8.28, 8.21, 8.05, 8.29 ], [ 8.13, 8.17, 8.05, 8.18 ], [ 8.2, 8.08, 8.05, 8.2 ], [ 8.07, 8.07, 8.04, 8.16 ], [ 8.05, 7.72, 7.72, 8.05 ], [ 7.68, 7.73, 7.62, 7.77 ], [ 7.62, 8.05, 7.57, 8.1 ], [ 8.02, 8.0, 7.94, 8.12 ], [ 8.0, 8.14, 7.98, 8.25 ], [ 8.15, 8.17, 8.12, 8.25 ], [ 8.17, 8.1, 8.07, 8.32 ], [ 8.13, 8.13, 8.03, 8.14 ], [ 8.1, 7.93, 7.9, 8.1 ], [ 7.93, 7.84, 7.65, 8.05 ], [ 7.79, 7.91, 7.61, 7.98 ], [ 7.84, 7.91, 7.79, 7.96 ], [ 7.92, 7.96, 7.91, 8.1 ], [ 7.93, 8.06, 7.93, 8.1 ], [ 8.11, 8.02, 8.01, 8.14 ], [ 7.99, 8.28, 7.97, 8.3 ], [ 8.28, 8.2, 8.15, 8.32 ], [ 8.2, 8.27, 8.16, 8.32 ], [ 8.26, 8.46, 8.21, 8.54 ], [ 8.36, 8.27, 8.25, 8.41 ], [ 8.27, 8.19, 8.18, 8.36 ], [ 8.19, 8.15, 8.1, 8.25 ], [ 8.18, 8.23, 8.14, 8.25 ], [ 8.39, 8.4, 8.33, 8.53 ], [ 8.35, 8.38, 8.3, 8.48 ], [ 8.38, 8.44, 8.33, 8.6 ], [ 8.45, 8.54, 8.4, 8.64 ], [ 8.54, 8.44, 8.41, 8.59 ], [ 8.46, 8.38, 8.35, 8.47 ], [ 8.35, 8.28, 8.25, 8.4 ], [ 8.27, 8.22, 8.16, 8.3 ], [ 8.23, 8.27, 8.2, 8.29 ], [ 8.25, 7.87, 7.77, 8.29 ], [ 7.9, 7.98, 7.85, 8.03 ], [ 8.0, 7.91, 7.88, 8.05 ], [ 7.91, 7.76, 7.7, 7.95 ], [ 7.78, 7.78, 7.76, 7.86 ], [ 7.79, 7.9, 7.78, 7.99 ], [ 7.96, 7.91, 7.85, 7.97 ] ], "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 630566, "itemStyle": { "normal": { "color": "#ef232a", "color0": "#14b143", "borderColor": "#ef232a", "borderColor0": "#14b143" } } }, { "type": "effectScatter", "name": "\u9664\u6743\u6807\u8bc6", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "circle", "symbolSize": 10, "data": [ [ "2016-05-11", 9.43 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 630566, "xAxisIndex": 0, "yAxisIndex": 1 }, { "type": "effectScatter", "name": "buy", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "triangle", "symbolSize": 10, "data": [ [ "2016-06-02", 8.33 ], [ "2016-06-06", 8.14 ], [ "2016-06-22", 8.14 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 630566, "itemStyle": { "normal": { "color": [ "#1d18ad" ] } }, "xAxisIndex": 0, "yAxisIndex": 0 }, { "type": "effectScatter", "name": "sell", "showEffectOn": "render", "rippleEffect": { "brushType": "stroke", "scale": 2.5, "period": 4 }, "symbol": "diamond", "symbolSize": 10, "data": [ [ "2016-06-03", 8.19 ], [ "2016-06-08", 8.08 ], [ "2016-06-27", 7.91 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "seriesId": 630566, "itemStyle": { "normal": { "color": [ "#140012" ] } }, "xAxisIndex": 0, "yAxisIndex": 0 }, { "type": "bar", "name": "volume", "data": [ 16640528.0, 25292025.0, 13415442.0, 12379285.0, 22996246.0, 16903650.0, 14476970.0, 19046870.0, 12195551.0, 24005945.0, 32674096.0, 29999690.0, 22872906.0, 29032503.0, 37007317.0, 112801256.0, 61870223.0, 41085321.0, 76630059.0, 46212650.0, 30658347.0, 26432412.0, 20836464.0, 20004381.0, 27950880.0, 15071927.0, 17613273.0, 19427854.0, 18475336.0, 34887722.0, 30518367.0, 22165659.0, 32929373.0, 26189911.0, 21463386.0, 21999787.0, 29642894.0, 18072768.0, 33943785.0, 22650514.0, 25283820.0, 16937366.0, 23235583.0, 11686800.0, 16364142.0, 19664781.0, 23801973.0, 14177493.0, 17724379.0, 13212317.0, 9840445.0, 30461989.0, 17871491.0, 21455803.0, 40836794.0, 22464305.0, 21131500.0, 22672688.0, 16673558.0, 38703827.0, 21311542.0, 20572295.0, 28203695.0, 15008198.0, 11945708.0, 12056747.0, 14111716.0, 9720007.0, 26910203.0, 15578101.0, 7641726.0, 13733841.0, 8408027.0, 10880379.0, 5679282.0 ], "barCategoryGap": "20%", "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 630566, "xAxisIndex": 0, "yAxisIndex": 2 }, { "type": "line", "name": "ma5", "symbol": "emptyCircle", "symbolSize": 4, "smooth": false, "step": false, "showSymbol": true, "data": [ [ "2016-04-19", NaN ], [ "2016-04-20", NaN ], [ "2016-04-21", NaN ], [ "2016-04-22", NaN ], [ "2016-04-25", 10.89 ], [ "2016-04-26", 10.84 ], [ "2016-04-27", 10.85 ], [ "2016-04-28", 10.81 ], [ "2016-04-29", 10.75 ], [ "2016-05-03", 10.75 ], [ "2016-05-04", 10.79 ], [ "2016-05-05", 10.91 ], [ "2016-05-06", 11.04 ], [ "2016-05-09", 11.23 ], [ "2016-05-10", 11.36 ], [ "2016-05-11", 10.77 ], [ "2016-05-12", 10.15 ], [ "2016-05-13", 9.54 ], [ "2016-05-16", 9.03 ], [ "2016-05-17", 8.44 ], [ "2016-05-18", 8.48 ], [ "2016-05-19", 8.48 ], [ "2016-05-20", 8.52 ], [ "2016-05-23", 8.45 ], [ "2016-05-24", 8.34 ], [ "2016-05-25", 8.27 ], [ "2016-05-26", 8.25 ], [ "2016-05-27", 8.23 ], [ "2016-05-30", 8.17 ], [ "2016-05-31", 8.2 ], [ "2016-06-01", 8.23 ], [ "2016-06-02", 8.24 ], [ "2016-06-03", 8.23 ], [ "2016-06-06", 8.25 ], [ "2016-06-07", 8.2 ], [ "2016-06-08", 8.16 ], [ "2016-06-13", 8.05 ], [ "2016-06-14", 7.95 ], [ "2016-06-15", 7.93 ], [ "2016-06-16", 7.91 ], [ "2016-06-17", 7.93 ], [ "2016-06-20", 8.02 ], [ "2016-06-21", 8.09 ], [ "2016-06-22", 8.11 ], [ "2016-06-23", 8.09 ], [ "2016-06-24", 8.03 ], [ "2016-06-27", 7.98 ], [ "2016-06-28", 7.94 ], [ "2016-06-29", 7.91 ], [ "2016-06-30", 7.94 ], [ "2016-07-01", 7.97 ], [ "2016-07-04", 8.05 ], [ "2016-07-05", 8.1 ], [ "2016-07-06", 8.17 ], [ "2016-07-07", 8.25 ], [ "2016-07-08", 8.3 ], [ "2016-07-11", 8.28 ], [ "2016-07-12", 8.27 ], [ "2016-07-13", 8.26 ], [ "2016-07-14", 8.25 ], [ "2016-07-15", 8.27 ], [ "2016-07-18", 8.32 ], [ "2016-07-19", 8.4 ], [ "2016-07-20", 8.44 ], [ "2016-07-21", 8.44 ], [ "2016-07-22", 8.42 ], [ "2016-07-25", 8.37 ], [ "2016-07-26", 8.32 ], [ "2016-07-27", 8.2 ], [ "2016-07-28", 8.12 ], [ "2016-07-29", 8.05 ], [ "2016-08-01", 7.96 ], [ "2016-08-02", 7.86 ], [ "2016-08-03", 7.87 ], [ "2016-08-04", 7.85 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "lineStyle": { "normal": { "width": 1, "opacity": 1, "curveness": 0, "type": "solid" } }, "areaStyle": { "opacity": 0 }, "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 630566, "xAxisIndex": 0, "yAxisIndex": 0 }, { "type": "line", "name": "ma10", "symbol": "emptyCircle", "symbolSize": 4, "smooth": false, "step": false, "showSymbol": true, "data": [ [ "2016-04-19", NaN ], [ "2016-04-20", NaN ], [ "2016-04-21", NaN ], [ "2016-04-22", NaN ], [ "2016-04-25", NaN ], [ "2016-04-26", NaN ], [ "2016-04-27", NaN ], [ "2016-04-28", NaN ], [ "2016-04-29", NaN ], [ "2016-05-03", 10.82 ], [ "2016-05-04", 10.82 ], [ "2016-05-05", 10.88 ], [ "2016-05-06", 10.93 ], [ "2016-05-09", 10.99 ], [ "2016-05-10", 11.05 ], [ "2016-05-11", 10.78 ], [ "2016-05-12", 10.53 ], [ "2016-05-13", 10.29 ], [ "2016-05-16", 10.13 ], [ "2016-05-17", 9.9 ], [ "2016-05-18", 9.62 ], [ "2016-05-19", 9.31 ], [ "2016-05-20", 9.03 ], [ "2016-05-23", 8.74 ], [ "2016-05-24", 8.39 ], [ "2016-05-25", 8.38 ], [ "2016-05-26", 8.36 ], [ "2016-05-27", 8.38 ], [ "2016-05-30", 8.31 ], [ "2016-05-31", 8.27 ], [ "2016-06-01", 8.25 ], [ "2016-06-02", 8.25 ], [ "2016-06-03", 8.23 ], [ "2016-06-06", 8.21 ], [ "2016-06-07", 8.2 ], [ "2016-06-08", 8.19 ], [ "2016-06-13", 8.15 ], [ "2016-06-14", 8.09 ], [ "2016-06-15", 8.09 ], [ "2016-06-16", 8.06 ], [ "2016-06-17", 8.04 ], [ "2016-06-20", 8.03 ], [ "2016-06-21", 8.02 ], [ "2016-06-22", 8.02 ], [ "2016-06-23", 8.0 ], [ "2016-06-24", 7.98 ], [ "2016-06-27", 8.0 ], [ "2016-06-28", 8.02 ], [ "2016-06-29", 8.01 ], [ "2016-06-30", 8.01 ], [ "2016-07-01", 8.0 ], [ "2016-07-04", 8.01 ], [ "2016-07-05", 8.02 ], [ "2016-07-06", 8.04 ], [ "2016-07-07", 8.09 ], [ "2016-07-08", 8.13 ], [ "2016-07-11", 8.16 ], [ "2016-07-12", 8.19 ], [ "2016-07-13", 8.21 ], [ "2016-07-14", 8.25 ], [ "2016-07-15", 8.28 ], [ "2016-07-18", 8.3 ], [ "2016-07-19", 8.33 ], [ "2016-07-20", 8.35 ], [ "2016-07-21", 8.34 ], [ "2016-07-22", 8.34 ], [ "2016-07-25", 8.35 ], [ "2016-07-26", 8.36 ], [ "2016-07-27", 8.32 ], [ "2016-07-28", 8.28 ], [ "2016-07-29", 8.23 ], [ "2016-08-01", 8.16 ], [ "2016-08-02", 8.09 ], [ "2016-08-03", 8.04 ], [ "2016-08-04", 7.99 ] ], "label": { "normal": { "show": false, "position": "top", "textStyle": { "fontSize": 12 } }, "emphasis": { "show": true, "textStyle": { "fontSize": 12 } } }, "lineStyle": { "normal": { "width": 1, "opacity": 1, "curveness": 0, "type": "solid" } }, "areaStyle": { "opacity": 0 }, "markPoint": { "data": [] }, "markLine": { "data": [] }, "seriesId": 630566, "xAxisIndex": 0, "yAxisIndex": 0 } ], "legend": [ { "data": [ "002385.XSHE", "\u9664\u6743\u6807\u8bc6", "buy", "sell", "volume", "ma5", "ma10" ], "selectedMode": "multiple", "show": true, "left": "center", "top": "top", "orient": "horizontal", "textStyle": { "fontSize": 12 } } ], "animation": true, "xAxis": [ { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "type": "category", "splitLine": { "show": false }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } }, "data": [ "2016-04-19", "2016-04-20", "2016-04-21", "2016-04-22", "2016-04-25", "2016-04-26", "2016-04-27", "2016-04-28", "2016-04-29", "2016-05-03", "2016-05-04", "2016-05-05", "2016-05-06", "2016-05-09", "2016-05-10", "2016-05-11", "2016-05-12", "2016-05-13", "2016-05-16", "2016-05-17", "2016-05-18", "2016-05-19", "2016-05-20", "2016-05-23", "2016-05-24", "2016-05-25", "2016-05-26", "2016-05-27", "2016-05-30", "2016-05-31", "2016-06-01", "2016-06-02", "2016-06-03", "2016-06-06", "2016-06-07", "2016-06-08", "2016-06-13", "2016-06-14", "2016-06-15", "2016-06-16", "2016-06-17", "2016-06-20", "2016-06-21", "2016-06-22", "2016-06-23", "2016-06-24", "2016-06-27", "2016-06-28", "2016-06-29", "2016-06-30", "2016-07-01", "2016-07-04", "2016-07-05", "2016-07-06", "2016-07-07", "2016-07-08", "2016-07-11", "2016-07-12", "2016-07-13", "2016-07-14", "2016-07-15", "2016-07-18", "2016-07-19", "2016-07-20", "2016-07-21", "2016-07-22", "2016-07-25", "2016-07-26", "2016-07-27", "2016-07-28", "2016-07-29", "2016-08-01", "2016-08-02", "2016-08-03", "2016-08-04" ], "scale": true } ], "yAxis": [ { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } }, "scale": true, "splitArea": { "show": true } }, { "show": true, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "max": 94.3, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } } }, { "show": false, "nameLocation": "middle", "nameGap": 25, "nameTextStyle": { "fontSize": 14 }, "axisTick": { "alignWithLabel": false }, "inverse": false, "boundaryGap": true, "max": 1128012560.0, "type": "value", "splitLine": { "show": true }, "axisLine": { "lineStyle": { "width": 1 } }, "axisLabel": { "interval": "auto", "formatter": "{value} ", "rotate": 0, "margin": 8, "textStyle": { "fontSize": 12 } } } ], "color": [ "#c23531", "#2f4554", "#61a0a8", "#d48265", "#749f83", "#ca8622", "#bda29a", "#6e7074", "#546570", "#c4ccd3", "#f05b72", "#ef5b9c", "#f47920", "#905a3d", "#fab27b", "#2a5caa", "#444693", "#726930", "#b2d235", "#6d8346", "#ac6767", "#1d953f", "#6950a1", "#918597", "#f6f5ec" ], "dataZoom": [ { "show": true, "type": "slider", "start": 0, "end": 150, "orient": "horizontal" }, { "show": true, "type": "inside", "start": 0, "end": 150, "orient": "horizontal" } ] }; myChart_962c362ca97a4c7680b1149c6dba2350.setOption(option_962c362ca97a4c7680b1149c6dba2350); });



全部回复

0/140

达人推荐

量化课程

    移动端课程
